DATA SERVICE

Excel

As with all the other tools data services allows you to load multiple data sets automatically. We have an XLSM file that demonstrates a simple case of loading 5 min price and demand from two separate reports. The macro is easy to modify to load any report, time period or instances. Excel sample

Excel expects web query data to be in XML format. You can either load it manually, or if this is something you do on a regular basis you may want to create a macro. The advantages of macros is that you can instantly load any number of live data sets and perform calculations on them all with the press of a button.

Running Reports

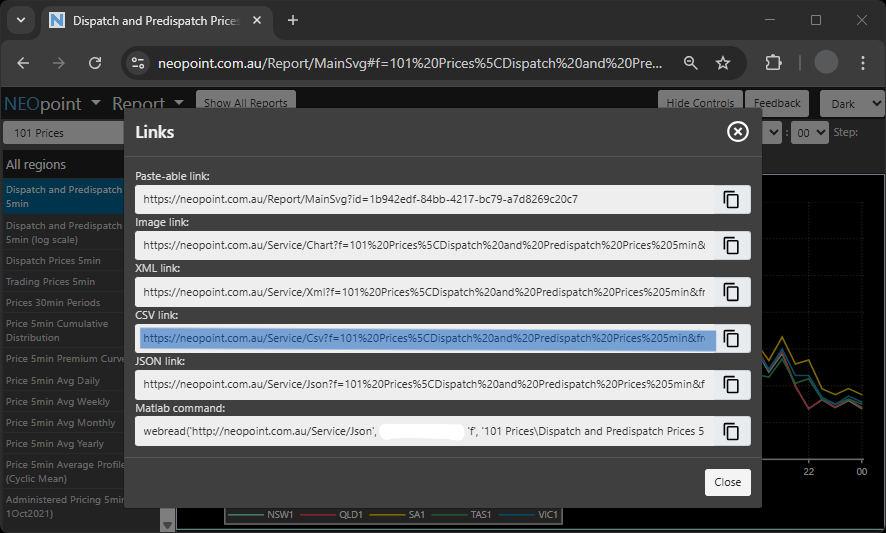

To start, open NEOpoint and run the required report and then click the “Links” button, select and copy the link. Sample XML link: https://www.neopoint.com.au/Service/Xml?f=104+Bids%5cRegion+Merit+Order+Stack+5min&period=Daily& from=2015-10-13&instances=Generator;NSW1§ion=0&key=***** An XML link has several parameters that you can customize.

• F – favourites object + selected report name
• Period – report period code
• From – report from date
• Instances – report instances
• Section – depends on the report but in most cases can be left as 0
• Key – NEOpoint login account API key

To manually load a result follow these steps:

1. open a blank Excel worksheet
2. click on the Data tab and click on “From Web”, in the dialog Address paste the URL you copied from NEOpoint, click GO then Import, set the location where you want the data to go
3. that’s it – the data should appear in the spreadsheet

The big advantage of data services is automatically loading results. This makes it easy to create spreadsheets that with the click of a button will load several data sets and perform calculations. The macro text below shows how to load data automatically. You can simply copy the text for the macro and paste into your own copy of an Excel spreadsheet, modifying the URL as required. You can also set where you want the data to be loaded and load additional data sets in the same macro by repeating the XmlImport line with the required URL for each additional data set. To understand the macro we also need to explain two other lines of code:

• Every time you import XML data, Excel creates an “XMLMap” so in your macro you need to add some code to delete ALL the XMLMaps otherwise they will keep accumulating. That’s what the XmlMap.Delete line does.
• When data is imported it is marked as read only and hence you can’t load new data on top of it hence we add a “ClearContents” command to clear the contents of the cells you are about to import data into. You will need to adjust the range “G:H” to match the columns where you will be importing data.

The sample macro code is shown below.

Sub GetData1()

'
' Get prices and demand
'
For Each XmlMap In ActiveWorkbook.XmlMaps
                  XmlMap.Delete
        Next

Columns("G:H").ClearContents
ActiveWorkbook.XmlImport URL:= _
        "https://www.neopoint.com.au/Service/Xml?f=101+Prices%5CRegion+Price+5min&from=2021-10-28+00%3A00&period=Daily&instances=NSW1§ion=-1&key=XXXXXXX" _
        , ImportMap:=Nothing, Overwrite:=True, Destination:=Range("$G$1")

Columns("J:N").ClearContents
ActiveWorkbook.XmlImport URL:= _
        "http://www.neopoint.com.au/Service/Xml?f=products.iesys.com%5cDemand+5min&period=Daily&from=2016-10-21&instances=NSW1§ion=-1&key=XXXXXXX" _
        , ImportMap:=Nothing, Overwrite:=True, Destination:=Range("$J$1")


End Sub

If the above macro is linked to a button and the button is clicked it will load the report results into the spreadsheet as shown below.

Running SQL queries

The sample code below shows how to write a macro that loads data from an SQL query.

Sub LoadData()

'Clear the workbook, adjust based on the columns your query uses
Columns("A:Z").ClearContents

'Put your Query here, ensure that multi line queries are joined together as separate strings (as in the following example)
Query = "select `SETTLEMENTDATE`, `RUNNO`, `REGIONID`, `PERIODID`, `RRP`, `EEP`," & _
"`INVALIDFLAG`, `LASTCHANGED`, `ROP`, `RAISE6SECRRP`, `RAISE6SECROP`, " & _
"`RAISE60SECRRP`, `RAISE60SECROP`, `RAISE5MINRRP`, `RAISE5MINROP`, " & _
"`RAISEREGRRP`, `RAISEREGROP`, `LOWER6SECRRP`, `LOWER6SECROP`, `LOWER60SECRRP`, " & _
"`LOWER60SECROP`, `LOWER5MINRRP`, `LOWER5MINROP`, `LOWERREGRRP`, `LOWERREGROP`, " & _
"`PRICE_STATUS` from mms.tradingprice where SETTLEMENTDATE between '2018-11-01' and '2018-11-02' limit 0, 10000"

'Put your API key here
apikey = "XXXXXXXXXXXXXXXX"

'Make POST Request
Set objHTTP = CreateObject("MSXML2.ServerXMLHTTP")
Url = "https://www.neopoint.com.au/data/query"
objHTTP.Open "POST", Url, False
objHTTP.setRequestHeader "Content-Type", "application/x-www-form-urlencoded"
objHTTP.Send ("query=" & Query & "&key=" & apikey & "&format=csv")

'get response text
resp = objHTTP.responseText

'Write to File
If objHTTP.Status = "200" Then
    Lines = Split(resp, Chr(10))
    For r = LBound(Lines) To UBound(Lines)
        Values = Split(Lines(r), ", ")
        For c = LBound(Values) To UBound(Values)
            Cells(r + 1, c + 1).Value = Values(c)
        Next c
    Next r
Else
    MsgBox "The POST request failed"
End If

End Sub

If the above macro is linked to a button and the button is clicked it will load the SQL query results into the spreadsheet as shown below.

MATLAB

MATLAB is a data analysis software package that is very popular amongst engineers and scientists. It has significant enterprise support, so it is often preferred over other open source/free software.

Running reports

Sample code below loads data from a 5min price report and plots it. Note: the CSV link is obtained from the NEOpoint platform.

url = "https://neopoint.com.au/Service/Csv?f=101+Prices%5CDispatch+and+Predispatch+Prices+5min&from=2021-07-14+00%3A00&period=Daily&instances=§ion=-1&key=******";
data = webread(url);

figure(1)
stackedplot(data, 'XVariable', 'DateTime');

Running SQL queries

To run SQL queries you will need a QueryTool enabled account. Due to the limitation on the length of the GET request url, we have found that is better to use the POST HTTP method to obtain the results from custom queries, especially large queries. The MATLAB code below demonstrates an example where results for a query are downloaded using the POST method.

% Required imports
import matlab.net.http.RequestMessage
import matlab.net.http.field.ContentTypeField
import matlab.net.http.io.FormProvider

% Query to run
query = [
    'select `SETTLEMENTDATE`, `RUNNO`, `REGIONID`, `PERIODID`, `RRP`, `EEP`,'...
    '`INVALIDFLAG`, `LASTCHANGED`, `ROP`, `RAISE6SECRRP`, `RAISE6SECROP`,'...
    '`RAISE60SECRRP`, `RAISE60SECROP`, `RAISE5MINRRP`, `RAISE5MINROP`,'...
    '`RAISEREGRRP`, `RAISEREGROP`, `LOWER6SECRRP`, `LOWER6SECROP`, `LOWER60SECRRP`,'...
    '`LOWER60SECROP`, `LOWER5MINRRP`, `LOWER5MINROP`, `LOWERREGRRP`, `LOWERREGROP`,'...
    '`PRICE_STATUS` from mms.tradingprice where SETTLEMENTDATE between "2018-11-1" and "2018-11-2" limit 0, 10000'
];

% Constructing data payload for message
data = FormProvider('query', query, 'key', '******', 'format', 'csv');

% Constructing POST message
request = RequestMessage( ...
    'POST', ...
    (ContentTypeField( 'application/x-www-form-urlencoded' )), ...
    data ...
);

% Sending Request
response = request.send( 'https://www.neopoint.com.au/data/query' );

% Getting result
result = response.Body.Data;

R Language

R is a very popular open source language based on the S language and used for statistical data analysis. The simplest way to load data is via the CSV format.

Running reports

Sample code below loads data from a 5min price report and plots it. Note that this method runs a NEOpoint report rather than an actual query.

w=read.csv(file="https://www.neopoint.com.au/Service/Csv?f=101+Prices%5CDispatch+and+Predispatch+Prices+5min&from=2018-11-05&period=Daily&instances=§ion=-1&key=*****")
plot(w$DateTime, w$NSW1.Price)
lines(w$DateTime, w$NSW1.Price)
rdate<-strptime(w$DateTime, "%Y-%m-%d %H:%M:%S" )
                            plot(rdate, w$NSW1.Price)
                            lines(rdate, w$NSW1.Price)

Running SQL queries

To run SQL queries you need a QueryTool enabled account. Because queries tend to be quite large the HTTP GET method used above cannot be used due to the ~2K limit on the length of a URL, therefore the POST method must be used. The sample code below shows how execute a query. It uses the httr library

library(httr)

query <- "select `SETTLEMENTDATE`, `RUNNO`, `REGIONID`, `PERIODID`, `RRP`, `EEP`,
`INVALIDFLAG`, `LASTCHANGED`, `ROP`, `RAISE6SECRRP`, `RAISE6SECROP`,
`RAISE60SECRRP`, `RAISE60SECROP`, `RAISE5MINRRP`, `RAISE5MINROP`,
`RAISEREGRRP`, `RAISEREGROP`, `LOWER6SECRRP`, `LOWER6SECROP`, `LOWER60SECRRP`,
`LOWER60SECROP`, `LOWER5MINRRP`, `LOWER5MINROP`, `LOWERREGRRP`, `LOWERREGROP`,
`PRICE_STATUS` from mms.tradingprice where SETTLEMENTDATE between '2018-11-1' and '2018-11-2' limit 0, 10000"
         requ <- list(
  query = query,
  key = "*****",
  format="csv"
)
res <- POST("https://www.neopoint.com.au/data/query", body = requ, encode = "form", verbose())
tabtext <- content(res, "text")
tab <- read.csv(text = tabtext, header = TRUE)

The above might look a bit tedious but it is easy to create a function that will wrap all of that up so that running a query just becomes a single function call. In the code sample below we define a function to run a query then we call it. The function takes a query string and returns a data frame.

RunQuery <- function(query) {
            requ <- list(
	  query = query,
	  key = "*****",
	  format="csv"
	)
	res <- POST("https://www.neopoint.com.au/data/query", body = requ, encode = "form", verbose())
	tab <- content(res, "text")
	read.csv(text = tab, header = TRUE)
}

RunQuery("select * from mms.tradingprice where SETTLEMENTDATE between '2018-11-2' and '2018-11-3'")

Google Sheets

GS can read data in XML or CSV format but we recommend CSV format. The screen shot below shows reading data in by pasting a command like: =ImportData("https://www.neopoint.com.au/Service/Csv?f=101+Prices%5CDispatch+Prices+5min&from=2017-12-10&period=Daily&instances=§ion=-1&key=xxxx")

function myFunction() {
  var csvUrl = "https://www.neopoint.com.au/Service/Csv?f=101+Prices%5CDispatch+Prices+5min&from=2017-12-10&period=Daily&instances=§ion=-1&key=xxxx";
  var csvContent = UrlFetchApp.fetch(csvUrl).getContentText();
  var csvData = Utilities.parseCsv(csvContent);

  var sheet = SpreadsheetApp.getActiveSheet();
  sheet.getRange(4,4, csvData.length, csvData[0].length).setValues(csvData);
}
